Rapidox 7100 Multigas Analyser
Product Information
The Rapidox 7100 Multigas Analyser is a high specification instrument designed for the analysis, control and monitoring of process gas in a wide range of industries. It allows the option of selecting multiple gas sensing configurations to suit the particular application. The analyser is housed within a 19″ (482mm) enclosure for convenient mounting into an industry-standard test equipment rack.
Up to seven gases are simultaneously measured using a range of high precision gas sensors; each sensor is specially designed and calibrated to avoid any cross-interference effects with the background process gas. Safety is ensured by the inclusion of flashback arrestors in the gas measuring circuit where required. Measurable gases include amongst others: CO2, CO, H2O, O2, C2H4, SO2, CH4, H2 and H2S.
When configured for applications where the gases are energy-containing (e.g. Biogas, Syngas) the calorific value of the gas sample is determined using thermodynamic calculations and simultaneously logged and displayed on-screen.
Read MoreProduct Information
An optional pump enables two modes of operations. For samples that are taken from a gas source at atmospheric pressure or below, the pump is activated to draw a sample through the analyser. Alternatively, the pump can be deactivated when sampling from a source at greater than atmospheric, allowing the gas to flow through the analyser. Gas flow is regulated manually via a rotary knob on the fascia and displayed electronically on the screen.
Standard features include two fully programmable alarm circuits (volt free contacts), programmable analogue outputs (0-10V and 4-20mA), easy calibration (user selectable gases), RS232 / RS485 communications and complete data-logging software.
A 7″ (180mm) full-colour touch screen interface with soft menu keys allows for easy operation in either permanent monitoring or sampling modes. All data is continuously logged for review and inspection and Excel compatible data can be downloaded via a USB memory stick.
Cambridge Sensotec offers a range of Rapidox servicing options. Regular gas analyser calibration significantly increases the measurement, reliability and repeatability of equipment. A full service is available via state-of-the-art automated stations, designed to calibrate Rapidox gas analysers accurately and efficiently.
Features
- Modular design allows for bespoke sensor combinations upon request
- Housed within a 19” enclosure for convenient mounting into industry-standard test equipment racks
- 7” (180mm) full-colour touch screen interface with soft menu keys for a better user experience
- Permanent or sampling modes available for extra functionality
- All data is continuously logged and Excel compatible data can be downloaded via a USB memory stick
- Operates on any worldwide mains voltage (90-260VAC)
- Fully programmable alarm settings
- Multi-language (Please contact for details)
- Password protection feature for extra security
Product Resources
Product Specification
| Type | Measurement |
|---|---|
| Sample connections | 4mm ID / 6mm OD Rectus or Swagelock fittings on rear |
| Warm-up time | 3-4 minutes at 20°C |
| Measurement time | Approximately 2-4 minutes (dependant on sensor configuration) |
| Voltage outputs | 0-10V linear, user programmable |
| Current outputs | 4-20mA linear, user programmable |
| Digital outputs | RS232 (RS485 option available): data streamed on demand |
| Data output | Excel compatible data via USB memory stick |
| Data storage | 4GB internal data storage is allowing for approx. 1 year of continuous monitoring |
| Max inlet temperature | 50°C |
| Max inlet pressure | 10 bar gauge |
| Operating temperature | -10°C to 40°C |
| Sample pump | 0-1 litre per minute, user selectable |
| Calibration | Zero and span calibration with two user-selectable gases |
| Supply Voltage | 90-260VAC, 50/60Hz |
| Display | 7″ (180mm) full-colour LCD with touch screen operation |
| Analyser dimensions | 132mm(H) x 482mm(W) x 365mm(D) |
| Weight | 6.5kg |
Related Accessories
Customer Testimonials
Related Products
Related products
-

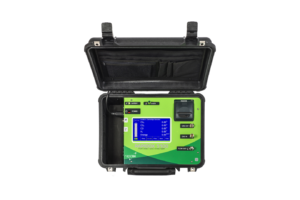

Rapidox 5100 Portable Multigas AnalyserNumber of Gases Up to 6 Sensor Option Internal -
